FD-819 Seat

MODEL FD-819
FD-819 Is designed for small and medium-sized tractors and other agricultural machinery design of the driver's seat.Its mechanical suspension mechanism is made up of two tensile spring and a hydraulic shock absorber.Cushion and backrest adopts vacuum foaming sponge manufacturing a molding technology, the surface material for black PVC.
Technical features:
Before and after the adjusting range is 150 mm
Height adjustment range of 60 mm
Shock absorber's schedule is 60 mm
Shock absorbing device according to body weight between 50-130 kg of stepless adjustment
Optional accessories:
headrest
Seat belts
Adjustable armrest

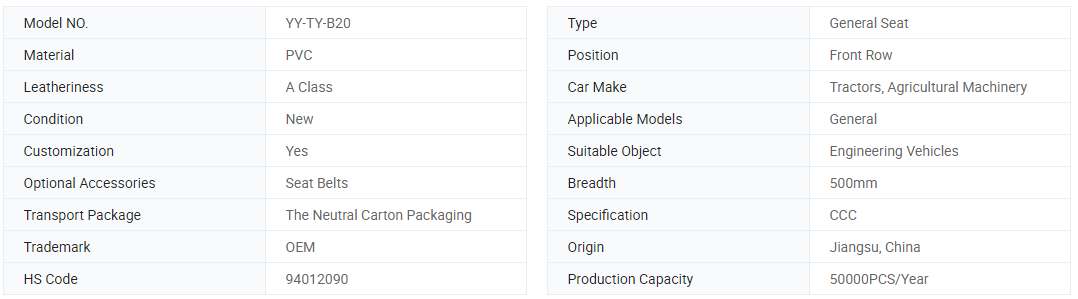

Specification:
1. Material: PU foam material (memory foam)+PVC leather
2. Color: Black, or customized
3. Weight adjustment 50-120kg
4. Semi_suspension
5. Slide: Fore/aft adjustment 150mm; Each step 15mm
6. Backrest adjustment 15°
5. OEM accepted.
