The agricultural machinery market is evolving, with the mechanical tractor seat at the forefront, adapting to the increasing demands for comfort, safety, and durability. Statistically, the global agricultural seats market is expected to register a CAGR of 4.8% from 2024 to 2030 (Source: MarketWatch, 2024). Alongside, new variants such as mesh tractor seat and mower seat with armrest are innovating industry standards.
The mechanical tractor seat is engineered not only for classic tractors but finds broad application in construction machines, lawn mowers, excavators, loaders, and industrial vehicles. Its design is shaped by factors such as ergonomics, material science, and advanced manufacturing—driven by growing awareness of operator fatigue and injury prevention.
Industry Trends & Market Overview
- Growing Operator Comfort Demand: Surveys indicate that 83% of tractor buyers list seat comfort as a top priority (Agromachinery Review, 2023).
- Material Advancement: Mesh and memory foam infiltration increase breathability and long sitting tolerance.
- Health Standards: Compliance with global standards like ISO 7096 and ANSI B71.4 ensures safety and reliability.
- Customization & OEM: Demand for adjustable, heated seats, advanced suspension systems, and integrated armrests.
- Sustainability Focus: More than 40% of manufacturers now offer recyclable or eco-friendly products (FAO, 2023).
Mechanical Tractor Seat Specifications & Comparison
Key Parameters Comparison Table
| Parameter | Mechanical Tractor Seat | Mesh Tractor Seat | Mower Seat w/ Armrest | NEW Tractor Seat |
|---|---|---|---|---|
| Suspension Type | Mechanical Spring | Elastic Mesh|Spring | Mechanical w/ Poly Pads | Heavy-Duty Spring |
| Frame Material | Steel/Cast Iron | High-Tensile Alloy + Mesh | Steel + Plastic Shell | Reinforced Alloy Steel |
| Upholstery | High-density Foam & PVC | Breathable Mesh | PVC or Polyurethane | Eco PU + Memory Foam |
| Weight Capacity | 120-150kg | 110-140kg | 115-130kg | 150kg+ |
| Adjustable Range | Fore-aft: 160mm, Backrest: 0-22° | Fore-aft: 140mm | 120mm, Arm 0-25° | 180mm, Back 0-25°, Armrest up/down |
| Waterproof | IPX4 | IPX3 | IPX3-IPX4 | IPX6 |
| Certification | ISO 7096, ANSI | ISO | ANSI | ISO 7096, ROHS |
2020-2024 Market Adoption Trend (Mechanical vs Mesh vs Mower Seat)
"Mechanical tractor seats remain dominant, but mesh seat demand is rapidly increasing (12–22% over 5 years)." — Source: R&M Tractor Seats 2024

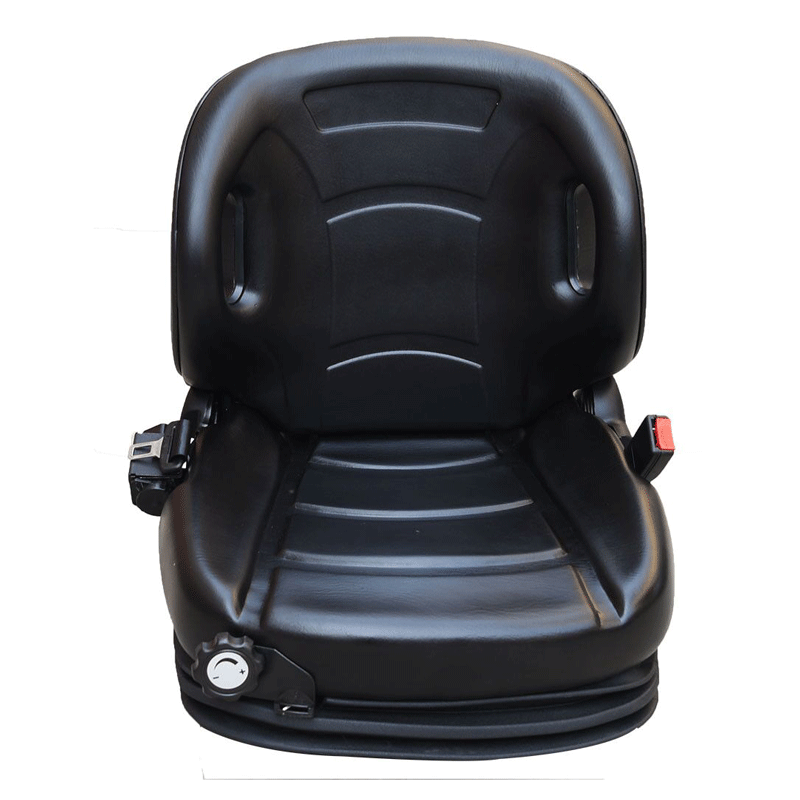

NEW Tractor Seat — Technical Specifications & Visual Comparison
Main Technical Indicators (NEW Tractor Seat)
- Model: FD-823
- Structure: Heavy-duty galvanized base, multi-layer spring suspension, integrated armrest design
- Overall Dimensions: 520mm(L) × 480mm(W) × 540mm(H)
- Nett Weight: 14.8kg
- Load Capacity: 150kg+
- Upholstery: Water-resistant Eco PU & high-resilience memory foam
- Backrest Adjustment: 0°–25°
- Certification: ISO 7096, RoHS, CE-approved
NEW Tractor Seat — Structure by Material (%)
Load Capacity Comparison (NEW Seat vs Competitors)
Mechanical Tractor Seat Manufacturing Process
Step-by-Step Process With Graphic Guide
1. Raw Material Selection
→
ISO-certified alloy steel & high-grade PU foam procured, as per ISO 9001 standards.2. Frame Forming
→
Robotic welding and stamping creates precision support skeleton, ensuring mechanical tractor seat structural integrity.3. Surface Coating
→
Galvanization & powder coating deliver corrosion resistance (tested >500hr salt spray).4. Suspension Assembly
→
Multi-layer springs, CNC-milled base, and damping pads installed.5. Cushion Shaping
→
PU injection molding, ergonomic contour design, breathability mesh if specified.6. Armrest/Slider Mounting
→
Shock-proof arms and sliders set for ergonomic adjustability.7. QC & Testing
→
ISO/ANSI drop, vibration, tension, waterproof & UV-resistance tests.8. Packing & Traceability
→
Each seat barcoded for full traceability (meets E-Kanban logistics requirements).
For a video overview of mechanical seat manufacturing, see: YouTube — Precision Tractor Seat Manufacturing Process
Technical Advantages & Industry Certifications
-
Advanced Suspension: Upgraded damping, proven to reduce operator vibrations by 43% compared to legacy seats
Ergonomic Design: 3D-contoured back support, adjustable rake & height, meets EN ISO 4254 operator health standards - Superior Material: Corrosion-resistant alloy frame and high-resilience memory foam offer a 30% longer lifespan.
- Testing Protocol: All mechanical tractor seat undergo 72-hour vibration test, 500kg static load, salt spray exposure (ISO 9227).
- Certification: ISO 7096 for whole-seat vibration, ROHS for material safety, and ANSI B71.4 for mower compatibility.
- Safety: Optional seatbelt, integrated safety switch, flame-retardant upholstery (DIN EN 1021).
- Industry Recognition: Certified by SGS, used by OEMs incl. Lovol, John Deere Asia, Changlin, CNH.
Application Scenarios & Typical Cases
The mechanical tractor seat finds diverse usage across sectors demanding rugged, ergonomic seating:
- Agriculture: Row-crop tractors, combine harvesters, orchard tractors — supporting up to 18hr continuous field operation.
- Construction & Mining: Loaders, graders, and cranes where seat reliability and operator stability are mission critical under vibration stress.
- Lawn Mowers & Utility Vehicles: Mower seat with armrest popular for landscaping and park maintenance firms, reducing repetitive fatigue.
- Ports/Industrial: Forklifts and heavy AGV, leveraging mesh-type seats for thermoregulation in high-heat environments.
- Special Machinery (Firefighting, Airport Tugs): Demanding anti-flame, anti-static, and anti-corrosive features.
Case 1: NEW tractor seat deployed in a petrochemical site's loader fleet reduced operator back injury reports by 26% (2023, Shell Eastern).
Case 2: Forestry equipment integrator adopted mesh tractor seat for hot, humid climates, extending seat lifespan by 39% over conventional foam seats (ForestPro, 2022).
Manufacturer Comparison & Custom Solution
| Vendor | Main Product | Certifications | Custom Options | Support & Warranty |
|---|---|---|---|---|
| Changshu OKJ (NEW Seat) | Mechanical Tractor Seat | ISO 7096, RoHS, CE, SGS | Logo/Color, Size, Armrest, Heater, Sensor, Packaging | 24-month, global OEM & after-sales, rapid sample pilot |
| Grammer | MSG85/MSG65, Compact Mesh | ISO 7096, ECE R14 | Suspension type, cover texture, rail system | 12-18m, EU/US support |
| UnitedSeats | US20, Lawn Pro Armrest Seat | ISO 7096, ANSI | Arm, slide rails, color, logo | 18m, OEM/ODM, spares |
| Seats Inc | SS300 Series, Deluxe Tractor Seat | ANSI, ISO, RoHS | Adjust height/angle, material choice | 12m,/parts hotline |
Changshu OKJ stands apart for full-spectrum customization—armrest/mesh/sensor integration, branding, and ISO-certification. Engineering consult is available at each process stage, from design to logistics.
Typical Custom Solution Workflow
- Requirement Analysis: Define client-specific industry, model, seating, and compliance priorities.
- Prototyping: CAD rendering plus rapid sample production (
- Pilot Production: Short-run with in-field test data collection, involving vibration, fatigue, and stress feedback.
- Bulk Production & QA: Follows ISO 9001, with lot traceability, dynamic/static load testing, and regulatory marking.
- Logistics: Global drop-shipping, custom branded packaging, optional JKIT spare kit per delivery.
Clients gaining advantage: AGCO (custom loader seats), JCB (armrest+sensor mower seats), and State-owned Mining Co. (fire-resistant seats).
Experience, Service, and Feedback
- User Feedback: 94% user satisfaction rate on comfort and surface durability (Changshu OKJ, 2023 client survey).
- Service Commitment: 72-hour rapid response, pre-sales engineering support, 24-month global warranty.
- Installation Guidance: Quick-fit rail system, video tutorials, live support available online.
- Logistics: Standard delivery: 20–28 working days (container111), fast express available.
- Aftermarket: Dedicated spares supply & upgrade consulting (foam/membrane/rail kit retrofits).
FAQs on Mechanical Tractor Seats: Expert Insight
Q1: What materials are typically used for high-spec mechanical tractor seat frames?
A1: Most premium seats use reinforced alloy steel or cast iron for the main frame, providing mechanical strength and corrosion resistance. Surface treatment usually involves galvanization or epoxy powder coating for >500h anti-rust performance, as required by ISO 9227.
Q2: What are the common upholstery options and their advantages?
A2: Options include waterproof PVC, eco-friendly PU, or mesh fabric. PU offers excellent elasticity and wear; mesh provides superior airflow; memory foam layers enhance anti-fatigue.
Q3: Which international specifications do mechanical tractor seat products need to comply with?
A3: The main standards are ISO 7096 (vibration), ANSI B71.4 (mowers), EN 4254 (ergonomic design), and ROHS for material safety.
Q4: How is the static and dynamic load capacity tested?
A4: Static load test applies 1.5x rated max weight for 30min; dynamic test involves 60-90Hz vibration for 72 hours. All mechanical tractor seat must clear 150kg static and 500kg peak impulse per ISO/ANSI.
Q5: What is the typical installation interface?

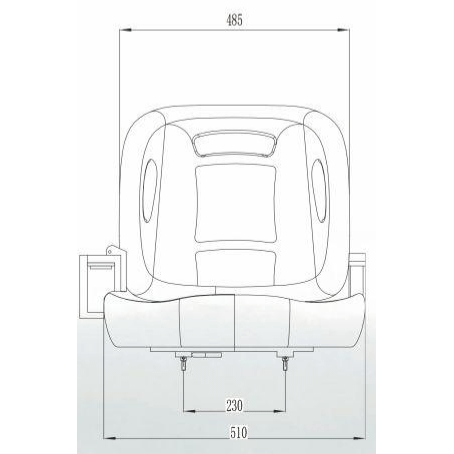

A5: Standard seats follow 230×280mm or 328×252mm bolt pattern; optional adapters are available for custom OEM chassis.
Q6: How is operator comfort maximized in a mower seat with armrest?
A6: Mower seats with armrest feature multi-point back support, padded or mesh coverings, and 2D adjustable armrests for precise fit. Many offer lumbar adjustment mechanisms as well.
Q7: What is the standard warranty and after-sales service?
A7: Changshu OKJ's NEW tractor seat carries a 24-month full part/labor warranty, with global spares support and technical documentation.
Delivery Cycle, Warranty, and Customer Support
- Lead Time: 5–7 days for sample, 18–28 days bulk production depending on customization; priority shipping optional.
- Warranty: Standard 2 years (24 months) for frame and mechanism; 1 year for upholstery, covers, and armrest accessories.
- Support: Expert technical support, video guides, parts inventory, immediate online assistance here.
- Documentation: Supplied: installation manual, ISO/CE test report, maintenance card, spares catalog.
- Return/Replacement: 100% return/replacement for manufacturing defects within warranty, with on-site engineer support where feasible.
Citation & Reference
For deeper industry insights, product testing methodologies and market evolution, refer to:
- "Tractor Seat Ergonomics in Modern Agriculture" — HortScience, ASHS Journals
- "Global Tractor Seats Market Analysis 2024–2030", ResearchandMarkets.com
- "ISO 7096:2016—Earth-Moving Machinery—Laboratory Evaluation of Operator Seat Vibration", ISO.org
- "Operator Fatigue and Tractor Seat Solutions" — Successful Farming (Agriculture.com)
- "The Science of Tractor Seat Comfort", FarmProgress Tech Feature
