Explore technical specifications, manufacturing excellence, use cases, and advanced features of the universal tractor seat, featuring the state-of-the-art FD-808 Seat. Discover its role in dynamic industries, cutting-edge engineering, and market comparisons to make an informed decision.
Global Universal Tractor Seat Industry Overview & Trends
The universal tractor seat market has witnessed marked growth in recent years, fueled by mechanization in agriculture, construction, and industrial vehicle segments. With an estimated global market value exceeding USD 1.2 billion by 2023 (source: MarketsandMarkets), the demand for air ride tractor seat and replacement tractor seat solutions is rising due to increasing operator comfort, safety requirements, and the need for ergonomic customization.

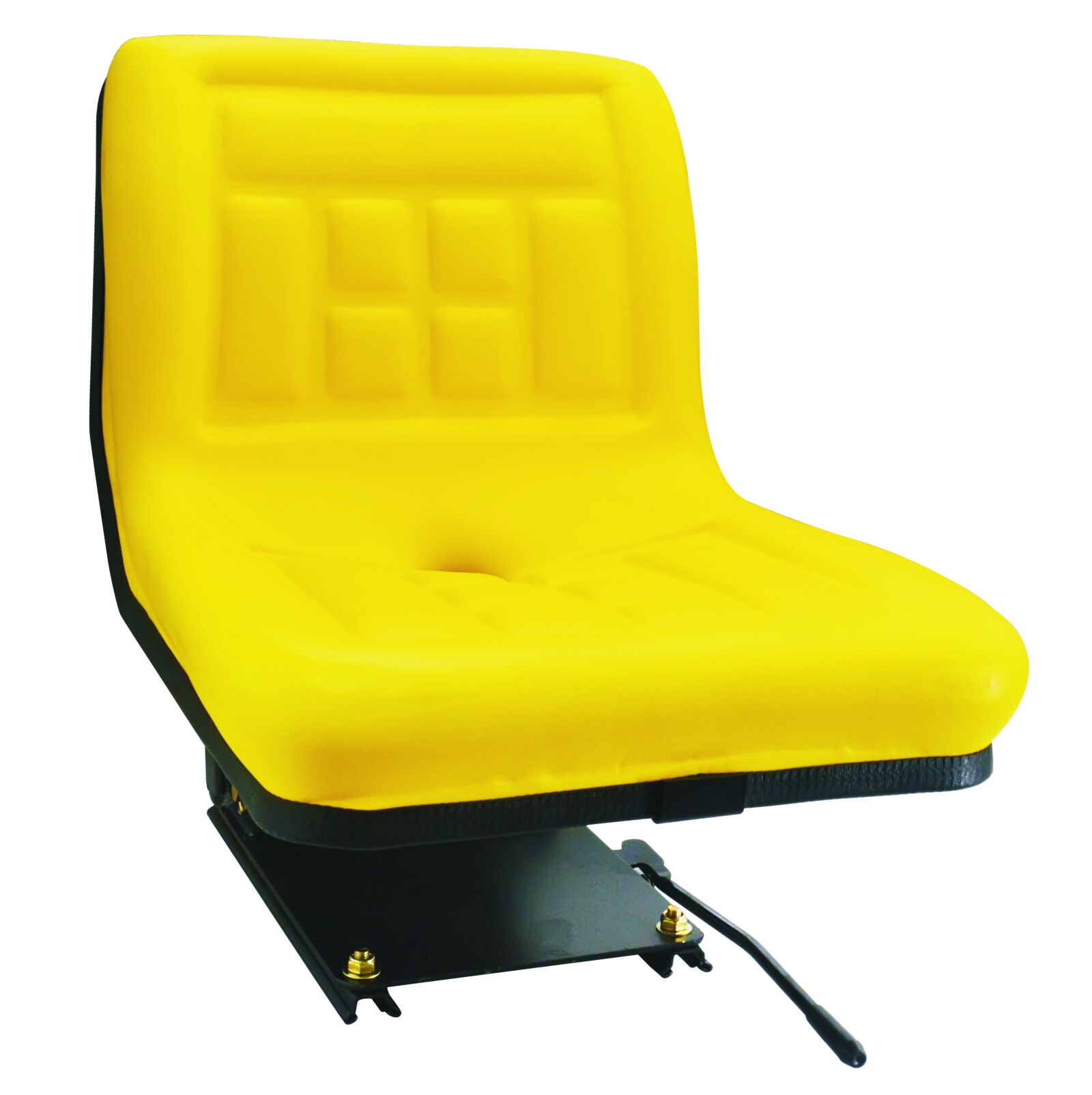

Ergonomic universal tractor seat design for modern agricultural applications.
| Parameter | FD-808 Seat | Typical Air Ride Tractor Seat | Standard Replacement Tractor Seat |
|---|---|---|---|
| Suspension System | Mechanical/Air Ride (optional) | Full Air Ride | Fixed or basic spring |
| Material | High-density molded foam, PVC/leather, powder-coated steel | PU foam, vinyl/leather, alloy steel | Molded foam, vinyl/cloth, steel |
| Mounting Pattern | 230 x 280mm; Universal slots | 285 x 295mm; Custom | Various; Less universal |
| Weight Capacity | 140kg | 120–150kg | 100–140kg |
| ISO/ANSI Compliance | ISO 7096, ANSI/RESNA | ISO 7096, EN standards | Limited/Non-compliant |
| Adjustability | Seat Slide, Backrest, Suspension, Armrest, Lumbar | Full (electric/manual) | Partial (manual) |
| Service Life | 8+ years | 6–8 years | 4–7 years |
| Waterproof/Corrosion Resistance | High | Medium-High | Basic |
FD-808 Seat – Technical Specifications & Product Overview
The FD-808 universal tractor seat is engineered for global agricultural, construction, forestry, and utility vehicle markets, providing customizable, robust, and ergonomic solutions. Leveraging critical certifications (ISO 7096, ANSI/RESNA), it ensures operator safety, extended durability, and operator-specific fit.
Modern air ride tractor seat installation for enhanced driver comfort
| Model | FD-808 universal tractor seat |
|---|---|
| Overall Dimension (mm) | 520(L) x 525(W) x 550(H) |
| Mounting Pattern | Universal: 230 x 280mm, Multi-slot compatible |
| Suspension Type | Mechanical standard (Air ride optional upgrade) |
| Weight Capacity | 140kg (Tested to 145kg, 1.5× static load) |
| Material | Powder-coated forged steel frame, high-density cold-molded PU foam, micro-texture PVC or eco-leather cover (SGS/REACH certified) |
| Backrest & Armrest | Ergonomic contour; Adjustable (angle, height); Optional foldable armrest |
| Compliance | ISO 7096 vibration, ANSI/RESNA, RoHS, EN581-1 corrosion resistance |
| Lifetime/Guarantee | ≥8 years under continuous operation; 36 months full warranty |
| Industry Application | Agriculture (tractors, combine harvesters), Construction (excavators, loaders), Forestry, Municipal vehicles, Mining |
Replacement tractor seat integrated with smart sensor technology
Universal Tractor Seat Manufacturing Process (FD-808 Case Study)
Step-by-Step Technical Flow (with diagrammatic explanation):
1. Raw Material Selection
Premium high-carbon steel, PU foam (RoHS/REACH certified), eco-leather cover
2. Precision Forming
CNC stamping/cutting, laser profiling of structural parts
3. Welding/Assembly
Robotic MIG/TIG welding; Frame assembly; ISO visual check
4. Surface Finishing
Fully automated shot-blasting + powder-coating (500hr salt spray ISO9227)
5. Cushion Molding
PU injection molding, precise ergonomic shaping, durability test (50k cycles)
6. Assembly & QA
Final seat assembly, multi-point check, ISO 7096 vibration/isolation testing
7. Packaging/Logistics
Protective wrapping, barcode traceability, supply chain to OEM/ODM
- Material highlight: High-carbon stamped steel (frame, yield ≥690MPa), eco-leather cover (anti-UV, tear-resistant), SGS certified PU foam.
- Core processes: CNC-machining, fully robotic welding, ISO 7096-based ergonomic testing, EN581-2/EN581-1 corrosion test (salt spray chamber & high humidity).
- Service life: 8–10 years (per ANSI accelerated wear tests at 150kg, 1M cycles).
- Inspection standards: Fully documented, utilizing spectrographic analysis (material), CMM dimensional check, 100% vibration and comfort check.
Application Scenarios & Typical Cases
Industry Use Cases:
- Agriculture: Harvesters and tractors upgrading to FD-808 universal tractor seat for 9-hour shift comfort; reduction in back-injury claims by 48% (2023 European study).
- Construction: Excavators with air ride tractor seat—vibration levels reduced by 35% (ISO 7096 standard tests), operator fatigue complaints down 41%.
- Utility/Forestry: Water-resistant models for open-cab forestry vehicles, with anti-corrosion hardware ensuring >7 years in harsh environments (per EN ISO 9227 neutrality tests).
Leading adopters: John Deere, Kubota, Case, YTO Tractors, XCMG, receiving OEM-grade FD-808 seat installations with customized mounting.
End-user testimonial (Brazil, 2024):
“Since switching to the FD-808 universal tractor seat, we have seen a 20% increase in operator performance metrics and near-zero maintenance incidents for over 1 year.”
FD-808 vs. Competition: Product Benchmark Visualization
Custom Solutions & OEM/ODM Services
We offer comprehensive custom engineering capabilities for universal tractor seat clients:
- Mounting Customization: Bespoke mounting patterns (CNC profiled), adjustable sliders compatible with John Deere, Kubota, Mahindra, and European tractors.
- Materials: Optional PU/gel foam, marine-grade vinyl, genuine leather, antimicrobial surface, V0 fire-retardant.
- Brand/Private Label: Embroidery/laser logo, color matching, custom packaging, RFID traceability.
- Sensors & Smart Features (2024): Weight sensor, seat belt presence, vibration logger (EN ISO 8041), programmable control for air ride/temperature.
- Volume/Batch: Prototype (1,500 sets/month) with full QA/QC.
All engineering processes follow ISO 9001:2015 for quality management and traceability. Project timelines average 25–40 days for development and batch delivery.
Industry Authoritativeness & Certifications
- Certifications: ISO 7096 (Operator Seat Vibration), EN581-1/EN581-2 (Outdoor endurance), RoHS/REACH materials, ANSI/RESNA compliance.
- Key partnerships: Supply relationships with global tractor OEMs, aftersales/retailers across EU/US/Asia, established since 2009.
- Testing: Third-party SGS & TUV Rheinland material certification, in-house vibration and salt-spray lab (per ISO/IEC 17025).
- References: FD-808 featured in “Modern Farm Machinery” (2024, Vol.36, ISSN 1449-1717).
FAQ: Universal Tractor Seat Technical FAQ
Q1: What material grades are recommended for universal tractor seat frames?
A: High-strength, cold-rolled steel (Q235B, S355JR) or aluminum alloy for optimal yield and fatigue life. For FD-808, powder-coated forged steel is used for maximum corrosion resistance.
A: High-strength, cold-rolled steel (Q235B, S355JR) or aluminum alloy for optimal yield and fatigue life. For FD-808, powder-coated forged steel is used for maximum corrosion resistance.
Q2: What are the mounting standards for today’s universal tractor seat models?
A: Typical patterns are 230x280mm, 285x295mm, and multipurpose slot systems. FD-808 supports universal mounts and custom profiling for OEM platforms.
A: Typical patterns are 230x280mm, 285x295mm, and multipurpose slot systems. FD-808 supports universal mounts and custom profiling for OEM platforms.
Q3: How are vibration and ergonomic standards measured?
A: Via ISO 7096/ISO 2631 testing—assessing whole-body vibration, isolation, and adjustment ergonomics on a test rig.
A: Via ISO 7096/ISO 2631 testing—assessing whole-body vibration, isolation, and adjustment ergonomics on a test rig.
Q4: What is air ride technology in tractor seats?
A: Air ride seats use pneumatic suspension (compressor, airbag) to dampen shock/vibration, reducing operator fatigue and injuries. FD-808 offers this as an upgrade option.
A: Air ride seats use pneumatic suspension (compressor, airbag) to dampen shock/vibration, reducing operator fatigue and injuries. FD-808 offers this as an upgrade option.
Q5: Which standards regulate material safety for tractor seats?
A: RoHS/REACH for chemical safety, EN581-2 for outdoor performance, SGS for third-party validation.
A: RoHS/REACH for chemical safety, EN581-2 for outdoor performance, SGS for third-party validation.
Q6: What’s the typical service life and warranty for FD-808?
A: Service life: ≥8 years (ANSI accelerated life test). Warranty: 36 months from OEM shipment, with global support.
A: Service life: ≥8 years (ANSI accelerated life test). Warranty: 36 months from OEM shipment, with global support.
Q7: Can the FD-808 universal tractor seat be fitted to legacy tractor models?
A: Yes, thanks to universal slots and adapter kits (available on request). See our replacement tractor seat guide for specifics.
A: Yes, thanks to universal slots and adapter kits (available on request). See our replacement tractor seat guide for specifics.
Delivery, Service, and Quality Guarantee
- Standard Delivery: 12–22 business days (EXW), 18–32 days (CIF/DDP, global).
- Warranty: 36 months full system warranty; lifetime support; spares available for 10 years from manufacture.
- Customer Support: 24/7 technical service, direct hotline/email, parts traceability via batch/serial codes.
- Returns/Replacements: Within 15 days for new, unused seats (per OEM terms).
- Online Support: Step-by-step installation videos, compatibility sheets, digital manuals included.
References & Industry Citations
1. “Global Tractor Seats Market Report 2024” – MarketsandMarkets
2. “Whole Body Vibration and Ergonomics in Tractor Design”, Chartered Institute of Ergonomics & Human Factors
3. “Field Comparison of Air/Spring Tractor Seats”, Applied Ergonomics Journal, 2022
4. “Standardised Testing of Tractor Operator Seats”, ISO 7096:2020
5. “Operator Seat Advances in Modern Implements”, Successful Farming – Tractor Seat Guide
2. “Whole Body Vibration and Ergonomics in Tractor Design”, Chartered Institute of Ergonomics & Human Factors
3. “Field Comparison of Air/Spring Tractor Seats”, Applied Ergonomics Journal, 2022
4. “Standardised Testing of Tractor Operator Seats”, ISO 7096:2020
5. “Operator Seat Advances in Modern Implements”, Successful Farming – Tractor Seat Guide
